Maea Uea Umea Uila Maualuga Maualuga

Mauaea Uea Umea Maualuga Maualuga Maualuga Ata Fa'aalia

Fa'amatalaga Puupuu:

O lifi laititi pasese e fa'aaogaina mo maea uaea lifi. I totonu o itumalo faapisinisi, o le uaea uaea faʻamatalaga faʻamatalaga e masani lava 8 * 19S + FC-8mm, 8 * 19S + FC-10mm.

Auina imeli ia matou

Fa'amatalaga Oloa

Faailoga o oloa

Fua Fa'atatau

1.O lenei faʻamatalaga e talafeagai mo le saoasaoa faʻatapulaʻa uaea maea, maualalo le saoasaoa, maualalo le avega elevise

2.E mafai foi ona matou faʻavasegaina e tusa ai ma ou manaʻoga.

Ole Tai'a ole maea	6*19S+PP	Utaga La'ititi la'ititi
	Fa'atatau le mamafa	Tensile Lua, Mpa		Tafatafa Tasi, Mpa
	Fa'atatau le mamafa	1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

1.Natural fiber core(NFC): E talafeagai mo uaea maea o masini traction ma fua faatatau saoasaoa ≤ 2.0m/s

2. Building height≤80M

Ole Tai'a ole maea	8*19S+NFC	Utaga La'ititi la'ititi
	Fa'atatau le mamafa	Tensile Lua, Mpa		Tafatafa Tasi, Mpa
	Fa'atatau le mamafa	1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

1.Mo IWRC, saoasaoa> 4.0 m / s, Fale maualuga> 100m

2.Mo IWRF,2.0

Ole Tai'a ole maea	8*19S		Utaga La'ititi la'ititi
	Fa'atatau le mamafa		Tafatafa Tasi, Mpa
	Fa'atatau le mamafa		1570		1620		1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN		/	kN
8	26	25.9	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	46.7	45.9	51	50.2
10	40.7	40.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	83	81.6	90.7	89.2
13	68.8	68.4	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	113	111	124	121
15	91.6	91.1	126	124	130	128	142	139
16	104	104	143	141	148	145	161	159
18	132	131	181	178	187	184	204	201
19	147	146	202	198	208	205	227	224
20	163	162	224	220	231	227	252	248
22	197	196	271	266	279	274	305	300

Fa'amatalaga o oloa

O lifi laititi pasese e fa'aaogaina mo maea uaea lifi. I totonu o itumalo faapisinisi, o le uaea uaea faʻamatalaga faʻamatalaga e masani lava 8 * 19S + FC-8mm, 8 * 19S + FC-10mm. O fa'atauga fa'atauga e fa'aaoga la'ititi lapo'a fa'amauina maea lifi o le 12mm, 13mm, ma uta u'amea uamea fa'amatalaga o le 12mm, 13mm, ma le 16mm le lautele.

I le fa'atonuina o le uaea uaea, ua talosagaina oe e tu'uina mai ia i matou fa'amatalaga atoatoa e pei ona fa'amaonia i lalo:

1. Faamoemoega: Mo le fea maea o le a faʻaaogaina;

2. Tele: Diamita o le maea i milimita po'o inisi;

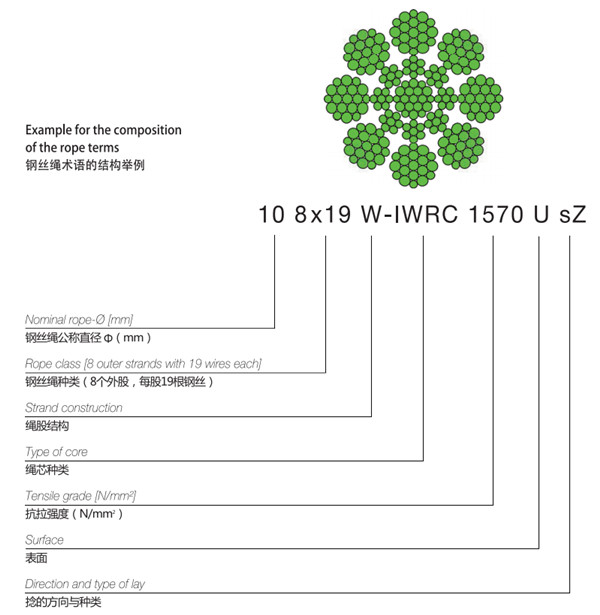

3. Fausiaina: Numera o manoa, numera o uaea i le manoa ma le ituaiga o tu fau;

4. Ituaiga Autu: Fiber core (FC), tutoatasi uaea maea autu (IWRC) po o tutoatasi uaea manoa autu (IWSC);

5. Ta'oto: Ta'otoga taumatau, ta'otoga agavale, ta'oto le sa'o, ta'oto le agavale,

6. Mea: Malamalama (ugalvanized), uamea po o staninless sila;

7. Vasega o Uaea:Tensile malosi o uaea;

8. Lubrication: Pe o le lubrication e manaʻomia pe leai ma manaʻomia le lubricant;

9. Umi: umi ole maea uaea;

10. Fa'aputuina: I coils afifi i le suauu pepa ma le ie hessian po o luga o reels laupapa;

11. Aofa'iga: I le numera o vili po'o reels i le umi po'o le mamafa;

12. Fa'amatalaga: Fa'ailoga o uta ma so'o se isi mana'oga fa'apitoa.

I le faagasologa o galuega umi, o le suauu lubricating i luga o le maea uaea o le a faasolosolo malie lava ona faaitiitia. O le mea lea, e tatau ai mo le maea uaea ona lubricated i taimi uma, lea e mafai ona faalautele ai le ola auaunaga o le maea uaea, ma faaitiitia ofu ma puipuia ele e ala i le relubricating. Pe a faʻatusatusa i se maea uaea faʻamago atoa, o le ola tautua o se maea uaea mago e mafai ona faʻaititia e oʻo atu i le 80%! O le toe lubrication o le maea uaea e taua tele. E masani ona matou filifilia le suauu lubricating T86, o se vai manifinifi e faigofie ona ulu i totonu o le maea uaea. E mana'omia na'o se pulumu po'o se paelo feavea'i 1 lita e sua ai. O le nofoaga e fa'aoga ai e tatau ona i ai le mea e pa'i ai le uaea i le fusi o le traction po o le uili ta'iala, ina ia faigofie ona tafe atu le lubricant i le maea uaea.
